HSH-Flo Stainless Steel 3 Way T/L-type AC/DC9-24V CR502 Electric Motorized Ball Valve 5 Wires Switching Valve Auto Return When Power Off & Position Feedback

$50.99

type: CR502-C T-type

CR502-C T-type
CR502-C L-type
CR502-B T-type
CR502-B L-type

size: 1/4"

1/4"
3/8"
1/2" 2N.M
1/2"
3/4"
1"
Add to Wishlist

visamasteramazon paymentsamerican expressapple paypaypal
Description

Technical Parameters
◎Valve Body Diameter: 1/4", 3/8", 1/2", 1/2", 3/4", 1" (Optional NPT/BSP)
◎Valve Body Material: Stainless Steel 304
◎Actuator Material: Engineering Plastics
◎Sealing Material: FKM&PTFE
◎Wiring Diagram: CR502 (Position Feedback & Auto Return When Power Off)
◎Working Voltage: AC/DC9-24V (Optional AC/DC9-24V, AC110-230V, AC24V/DC12-24V)
◎Working Current: ≤1A
◎Working Medium: Fluid, Air
◎Working Pressure: Max 1.0MPa / Max 1.5MPa
◎Switching Time: ≤15s / ≤12s
◎Life Time: 70000 times (Testing pressure is 0.4MPa, medium is water)
◎Actuator Rotation Angle: 90° / 360°
◎Torque Force: 10N.m / 15N.m
◎Cable Length: 0.5m (Optional 1.5m)
◎Environment Temperature: -15℃ ~ 50℃
◎Liquide Temperature: 2℃ ~ 90℃
◎Switch Indicator: YES

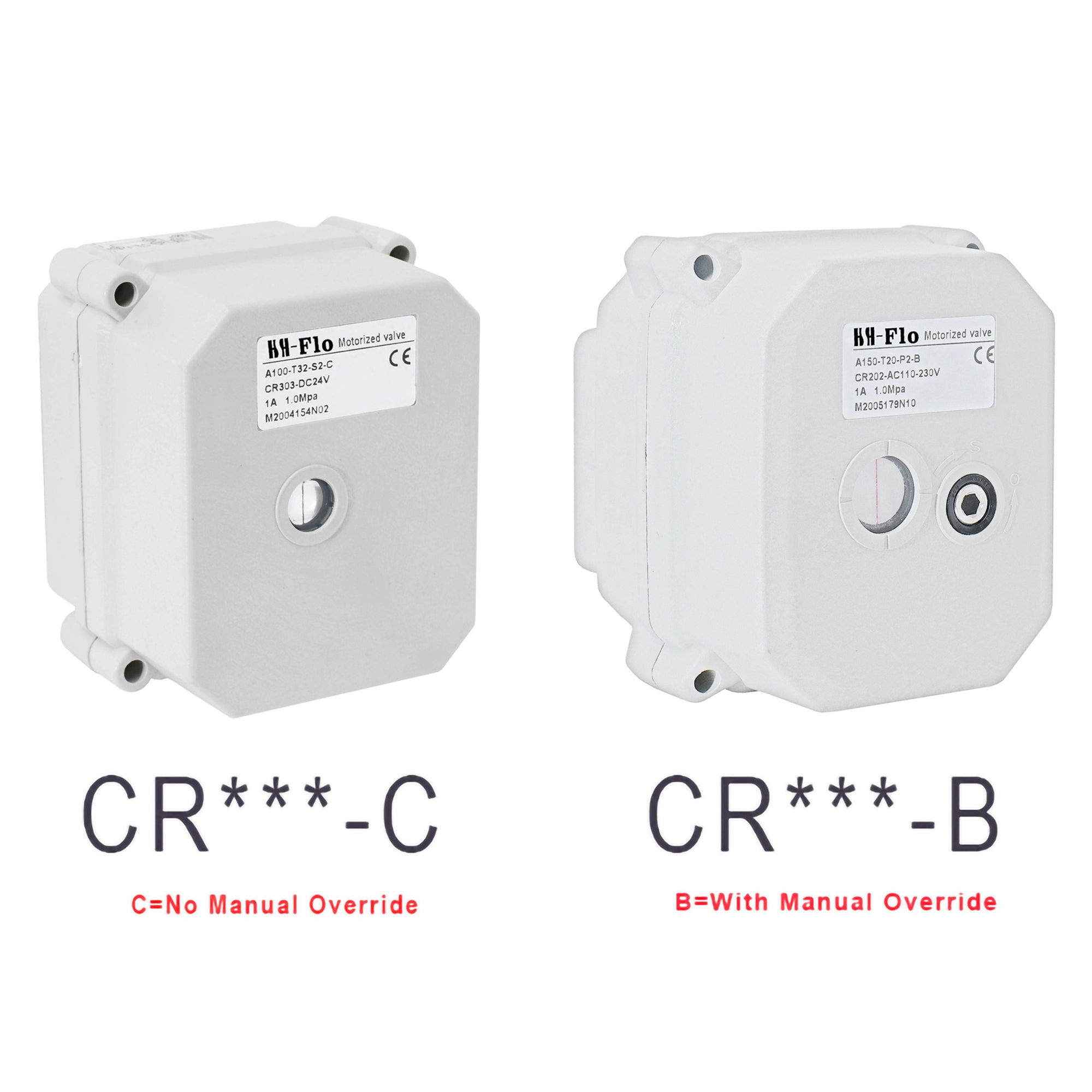

◎Manual Override: NO(-C) / YES(-B)
◎Protection Class: IP67

SS304 1/4", 3/8", 1/2"
1/2", 3/4", 1"
CR502
-C -B -C -B
Working
Voltage
AC/DC9-24V
AC110-230V
AC/DC9-24V AC/DC9-24V
AC110-230V
AC/DC9-24V
AC110-230V
 AC24V/DC12-24V
Working
Current
≤500mA ≤1A
Switching
Time
≤5s ≤15s ≤12s
Actuator
Rotation
90° 90° 360°
Torque
Force
2N.m 10N.m 15N.m
Manual
Override
NO YES NO YES

Application
◎HVAC;
◎Water Treatment;
◎Chemical Process;
◎Air Compressor Drainage;
◎Automatic Control System;
◎Solar Hot Water Engineering;
◎Watering Flowers, Regular Humidification;
◎Air Conditioning Automatically Humidifies;
◎Automatic Control Of Small Industrial Equipment;
◎Environmental Protection, Efficient Water-saving;
◎Replace Solenoid Valve (Especially when solenoid valve cannot work reliably);

Features
◎High protection level, can work in most working conditions.
◎Reliable performance, large output torque, up to 50000-100000 times, easy to meet various requirements.
◎Mechanical and electrical limit integrated design, accurate positioning, high consistency, eliminate valve swing.
◎POM gears cooperate with metal gears, POM gears use high-speed to reduce noise, while metal gears use low-speed to ensure the reliability of the gears.
◎Full bore design, no leakage, large flow, the valve is bi-directional ball valve, regardless of inlet and outlet; Most suitable for heavy dirt and a state of no action for a long time.

Manual Override Instructions
◎In case of anelectric supply failure, it is possible to operate the actuator manually.
◎Power must in off position when start the manual override.
◎Gently putt up the knob about 3mm, then revolve the knob around left and right to control the valve open or close.
◎When the red needle in the indicator pointing to "S", means the valve is closed; When pointing to "O", means the valve is open.
◎After finish the manual override operation, must press down the knob, so that for the normal electric operation.
