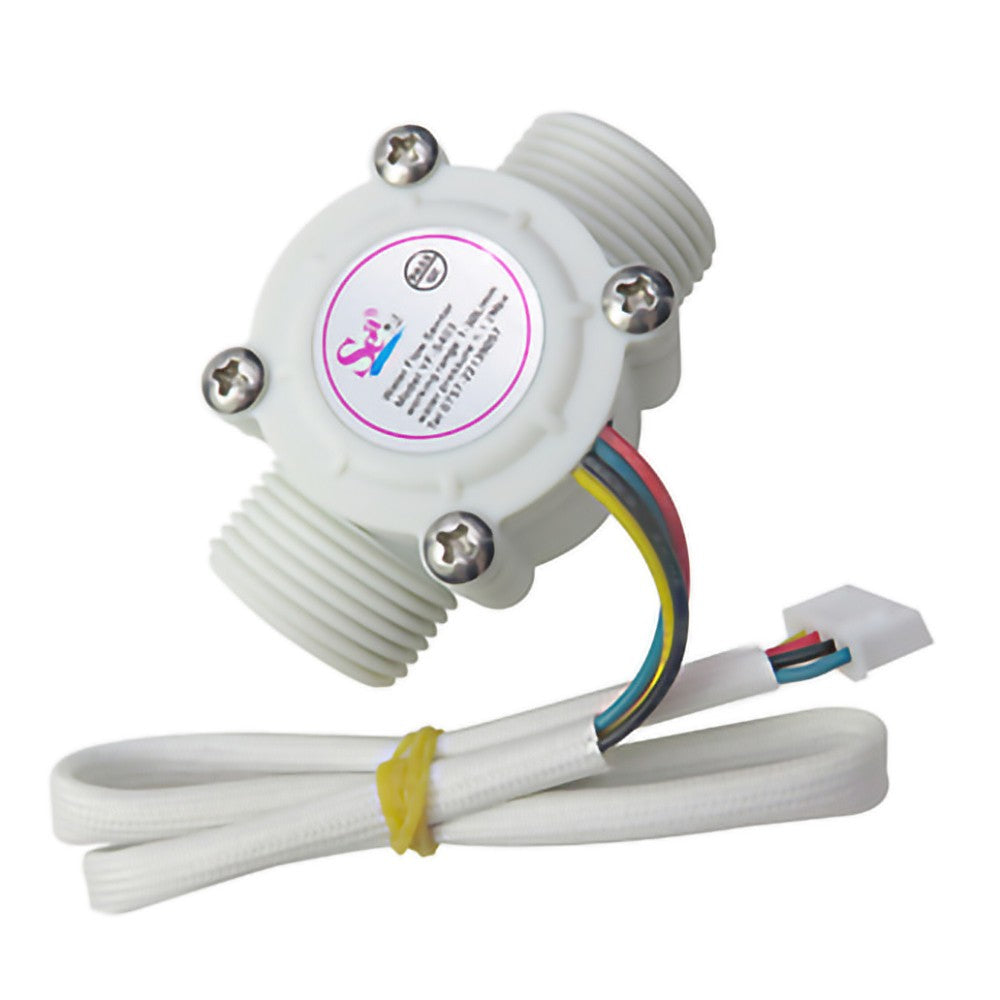

5VDC Water Flow Sensor G3/4" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal With Temperature Sensing
5VDC Water Flow Sensor G3/4" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal With Temperature Sensing
5VDC Water Flow Sensor G3/4" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal With Temperature Sensing
  • Load image into Gallery viewer, 5VDC Water Flow Sensor G3/4" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal With Temperature Sensing
  • Load image into Gallery viewer, 5VDC Water Flow Sensor G3/4" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal With Temperature Sensing
  • Load image into Gallery viewer, 5VDC Water Flow Sensor G3/4" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal With Temperature Sensing

5VDC Water Flow Sensor G3/4" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal With Temperature Sensing

Regular price
$16.99
Sale price
$16.99
Regular price
Sold out
Unit price
per

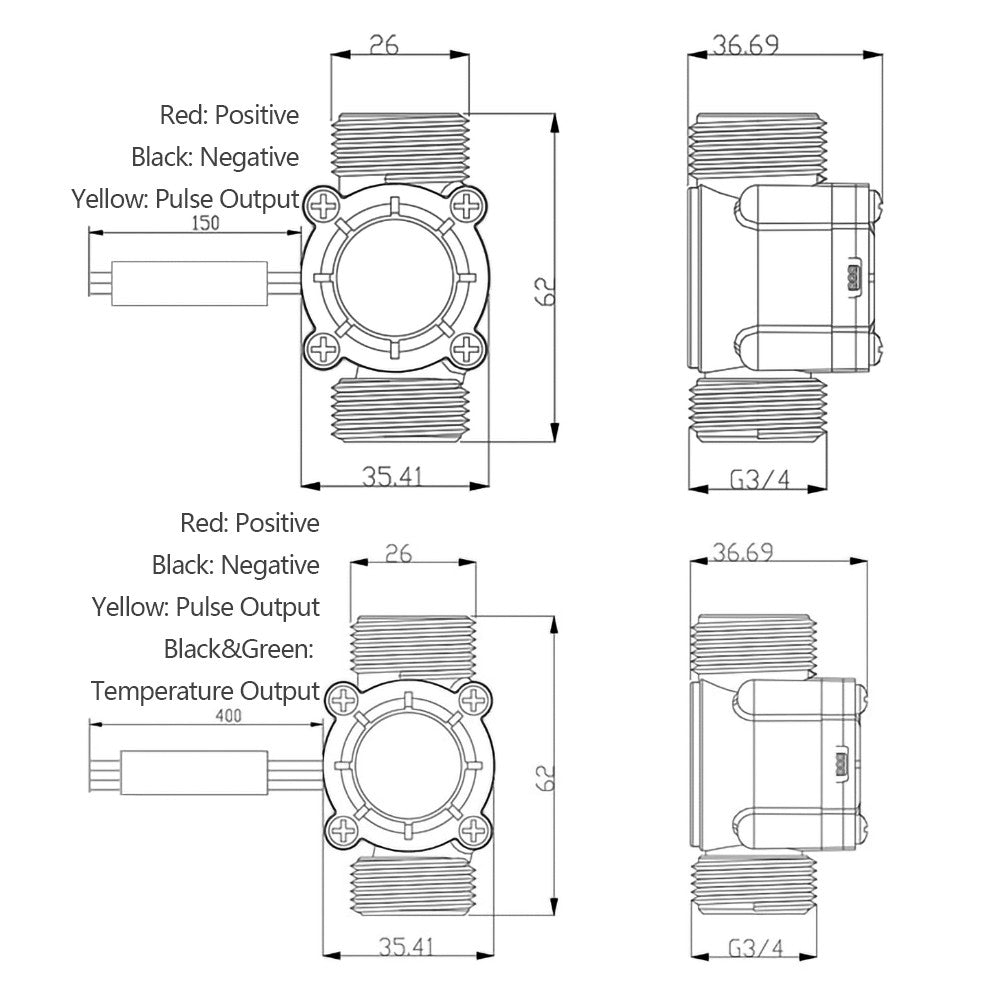

Specification
◎ Model: YF-S403
◎ Output Signal: NPN Pulse Signal(If you need PLC, please contact customer service first)
◎ Size: 3/4"
◎ Diameter: 26mm
◎ Voltage: 5VDC
◎ Flow Rate: 2-60L/min
◎ Pulse: f=(5*Q) Q=L/min
◎ Pressure: <1.75MPa
◎ Operating Temperature: ≤80℃
◎ Operating Humidity: 35% ~ 90% RH
◎ Ambient Temperature: -20℃ ~ 80℃
◎ Environmental Humidity: 25% ~ 95% RH
◎ Medium: Non-corrosive Low-viscosity Liquid

Note
◎ Vertical installation.
◎ Mainly used in milk, chemicals, paint, detergent and other liquids with high concentration and non-corrosive (no impurities).

Feature
◎ High precision;
◎ Not easy to leak;
◎ Comply with ROHS testing;

Application
◎ Water heater;
◎ Drinking fountain;
◎ Water vending machine;
