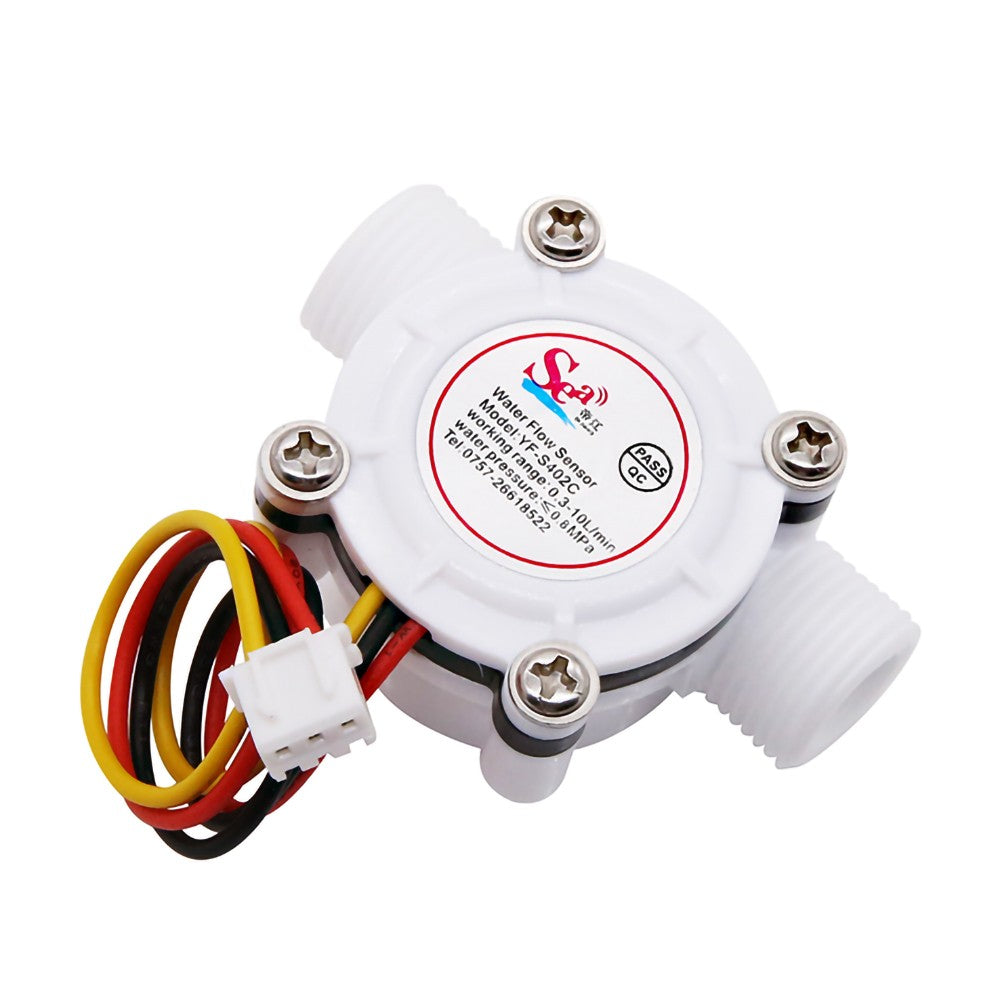

5VDC Water Flow Sensor 3/8" Turbine Flowmeter Industrial-grade Large Flowmeter Pulse Signal

Specification
◎ Model: YF-S402C
◎ Output Signal: NPN Pulse Signal(If you need PLC, please contact customer service first)
◎ Size: 3/8"
◎ Diameter: 16mm
◎ Voltage: 5VDC
◎ Flow Rate: 0.5-10L/min
◎ Pulse: f=(23*Q) Q=L/min
◎ Pressure: <1.75MPa
◎ Operating Temperature: ≤80℃
◎ Operating Humidity: 35% ~ 90% RH
◎ Ambient Temperature: -20℃ ~ 80℃
◎ Environmental Humidity: 25% ~ 95% RH
◎ Medium: Non-corrosive Low-viscosity Liquid

Note
◎ Vertical installation.
◎ Mainly used in milk, chemicals, paint, detergent and other liquids with high concentration and non-corrosive (no impurities).

Feature
◎ High precision;
◎ Not easy to leak;
◎ Comply with ROHS testing;

Application
◎ Water heater;
◎ Drinking fountain;
◎ Water vending machine;
